CL2000
€260.00
Tax excluded

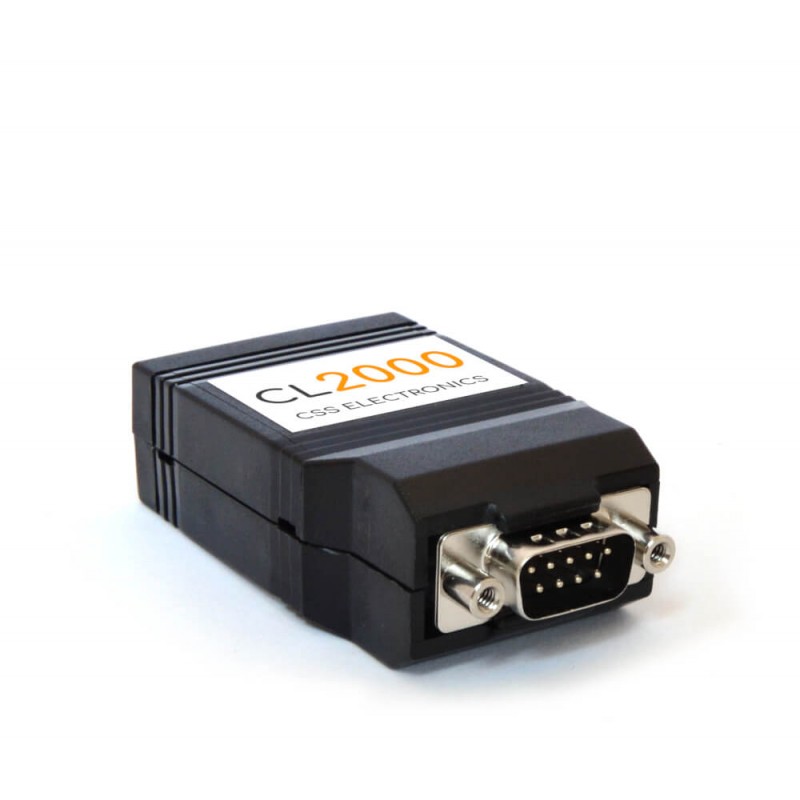

Stand-alone CAN bus frame data logger, time-stamps
- CAN bus frame data logger, time stamps, stand-alone
- Data saved on an SD card or on-line streaming via USB to PC
- Data storage on SD card (SDHC) with a capacity of 2-32 GB, file system: standard FAT
- Data logging: protocol independent
- OBD 2 protocol: the ability to define and send frames "data request"
- Free DBC conversion and configuration software
- Transmission speed up to 1 Mb/s
- Autodetection or manual selection of the transmission speed
- CAN 2.0A (standard-frame) and 2.0B (extended-frame) protocols supported
- Frame filtration (from e.g. one or a group of devices in the CAN network)
- 9-pin D-sub connector (in accordance with CiA DS 102-1 recommendations)
- External power supply via CAN connector, from +7 Vdc to +32 Vdc
- Power consumption <1W
- Working temperature -40°C - +85°C
- Enclosure class: IP40
cl2000
Data sheet
- Interface/bus
- USB
- CAN version
- 2.0A/2.0B
