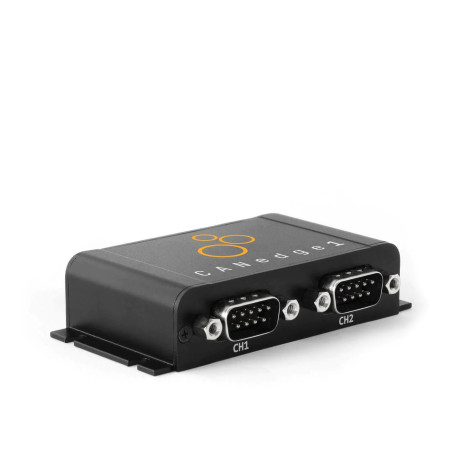

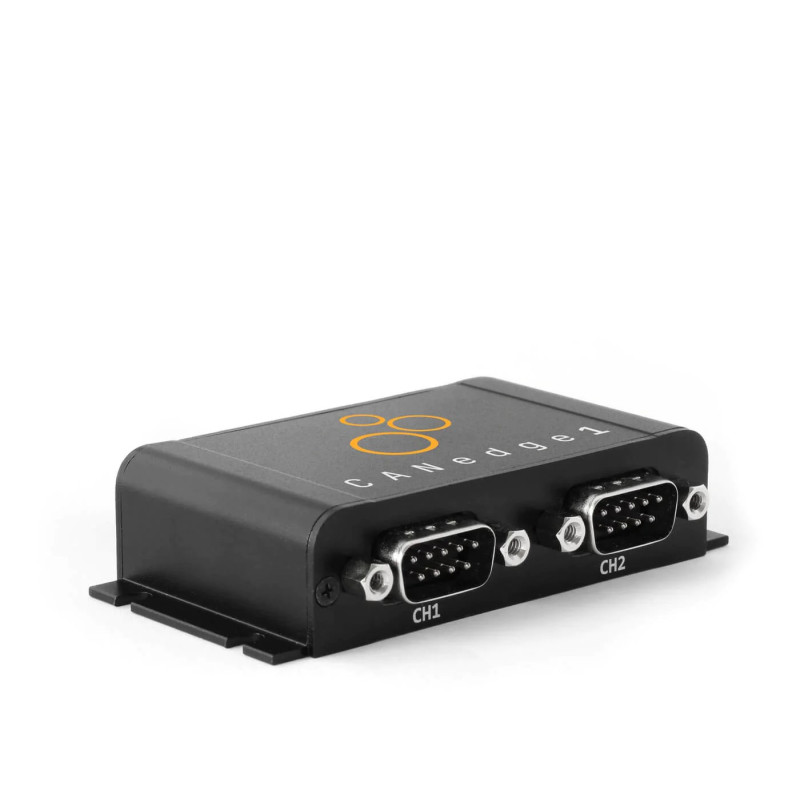

CANedge1
€370.00
Tax excluded
Stand-alone CAN bus frame data logger, 2 x CAN/CAN FD & 2 x LIN, time-stamps, GPS/IMU option
- 2 x CAN FD, 2 x LIN (master or slave)
- CAN/CAN FD bus frame data logger, time stamps, stand-alone
- Data saved on an SD card
- Data storage on SD card (SDHC) with a capacity of 2-32 GB, file system: standard FAT
- Data logging: protocol independent
- OBD 2 protocol: the ability to define and send frames "data request"
- Free 'asammdf' software
- Free DBC conversion and configuration software
- CANcloud telematics platform for managing devices & data via your browser
- CAN 2.0A (standard-frame) and 2.0B (extended-frame) protocols supported;
Transmission speed up to 1 Mb/s - Autodetection or manual selection of the transmission speed
- CAN FD;
Transmission speed up to 5 Mb/s - Frame LIN: speed: up to 20 kB/s
- Frame filtration (from e.g. one or a group of devices in the CAN network)
- Transfer Modes Station mode: Connects to a WiFi access point (e.g. a router or 3G/4G hotspot) to transfer data
- GPS version: includes GNSS/IMU, position, speed, attitude, acceleration
- 9-pin D-sub connector (in accordance with CiA DS 102-1 recommendations)
- External power supply via CAN connector, from +7 Vdc to +32 Vdc
- Power consumption <1W
- Working temperature -25°C - +70°C
- Enclosure class: IP40
canedge1
Data sheet
- CAN version
- FD
- Channels
- 2
- LIN
- yes
- GPS
- yes
- Wi-Fi
- no
