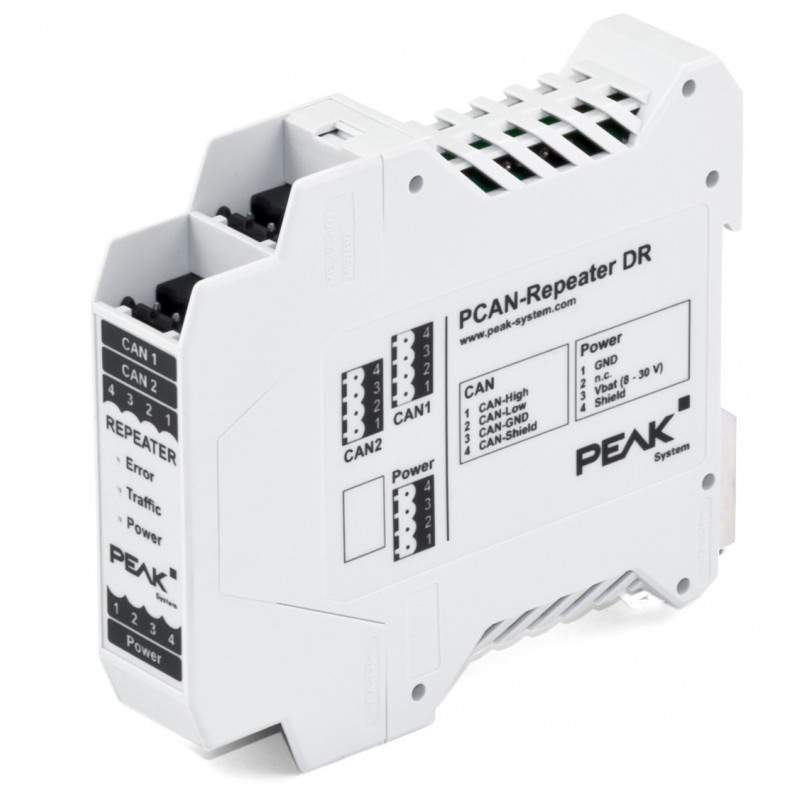

CAN/CAN FD Repeater DR

CAN and CAN FD Repeater for the Decoupling of Bus Segments

• Two High-speed CAN channels (ISO 11898-2)
• Bit rates from 5 kbit/s up to 1 Mbit/s
• Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
• NXP PCA82C251 CAN transceiver
• Suitable for the use in CAN FD buses with data bit rates up to 4 Mbit/s and nominal bit rates up to 1 Mbit/s
• Connections for CAN and power supply via 4-pin screw terminal block (Phoenix)
• LEDs display CAN bus load and CAN errors
• Each CAN channel can be selectively terminated
• Galvanic isolation rated up to 5 kV according to IEC60601-1, between both CAN channels and between CAN and power supply
• Transmission of CAN channel 1 or CAN channel 2 can be switched off
• Plastic casing (width: 22.5 mm) for mounting on a DIN rail (TH35)
• Voltage supply from 8 to 30 V
• Extended operating temperature range from -40 to 85 °C
