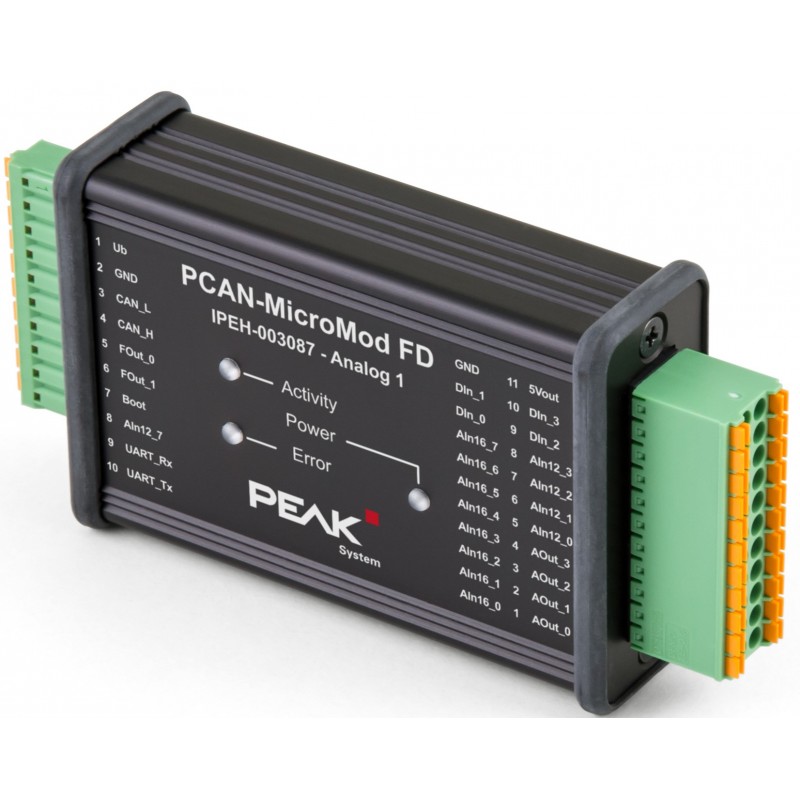

PCAN-MicroMod FD Analog 1

Configurable CAN FD Module with Focus on Analog I/O

• Board with plugged on PCAN-MicroMod FD
• Configuration via the CAN bus with the Windows software "PCAN-MicroMod FD Configuration"
• High-speed CAN connection (ISO 11898-2)
• Complies with CAN specifications 2.0 A/B and FD
• CAN FD bit rates for the data field (64 bytes max.) from 20 kbit/s up to 10 Mbit/s
• CAN bit rates from 20 kbit/s up to 1 Mbit/s
• Switchable CAN termination
• 2 frequency outputs
• Low-side switches
• Adjustable frequency range from 0 to 20 kHz
• 1 analog input for voltage monitoring up to 30 V, resolution 12 bit
• 8 analog inputs
• Resolution 16 bit
• Measuring range adjustable: ±2.5 V, ±5 V, ±10 V, ±20 V
• 4 analog inputs
• Resolution 12 bit
• Measuring range 0 - 10 V
• 4 analog outputs
• Resolution 12 bit
• Voltage range adjustable: 0 - 5 V or 0 - 10 V
• 4 digital inputs
• Pull-up or pull-down configurable
• 4-bit rotary coding switch for setting the module ID
• 3 status LED
• Aluminum casing with spring terminal connectors
• Operating voltage 8 to 30 V
• Extended operating temperature range from -40 to 85 °C
