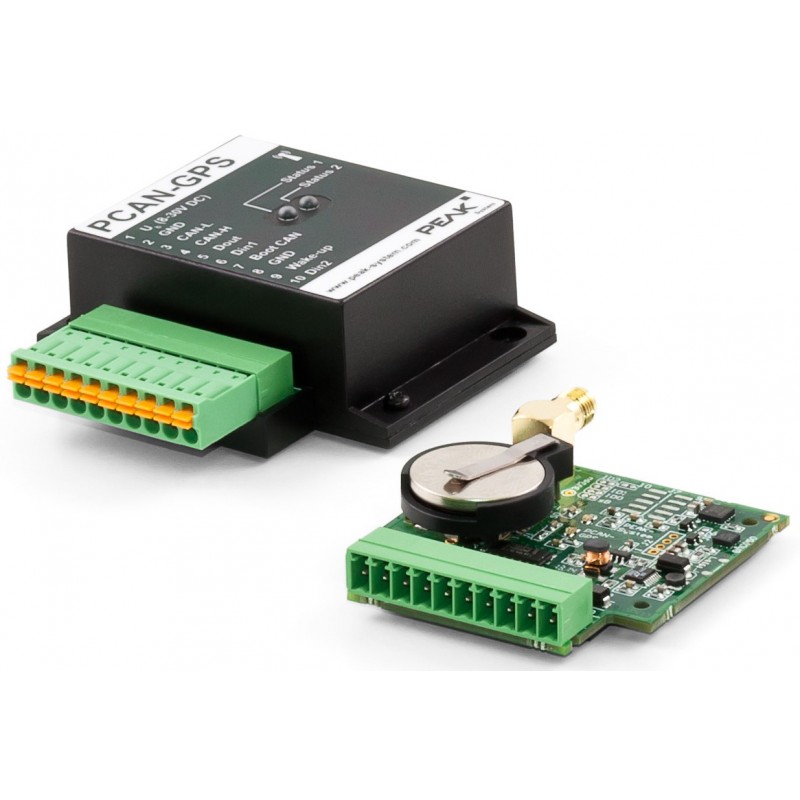

PCAN-GPS
€285.00
Tax excluded
Programmable Sensor Module with CAN, satellite receiver, magnetic field sensor, accelerometer, gyroscope
Programmable Sensor Module with CAN, satellite receiver, magnetic field sensor, accelerometer, gyroscope
- NXP LPC4000 series microcontroller (ARM Cortex-M4)
- Receiver for navigation satellites u-blox MAX-7W (GPS, Galileo, GLONASS, QZSS, and SBAS)
- Bosch BMC050 electronic three-axis magnetic field sensor and three-axis accelerometer
- Gyroscope STMicroelectronics L3GD20
- High-speed CAN channel (ISO 11898-2) with bit rates from 40 kbit/s up to 1 Mbit/s
- Complies with CAN specifications 2.0 A/B
- On-chip 4 kByte EEPROM
- microSD memory card slot
- Wake-up by CAN bus or by separate input
- 2 digital inputs (high-active)
- 1 digital output (low-side driver)
- LEDs for status signaling
- Connection via a 10-pole terminal strip (Phoenix)
- Voltage supply from 8 to 30 V
- Extended operating temperature range from -40 to 85 °C (with exception of the button cell)
- New firmware can be loaded via CAN interface
- Not recommended for new projects. We suggest you consider using the FD version
IPEH-002110
Data sheet
- CAN version
- 2.0A/2.0B
- Isolation
- no
- GPS
- yes
