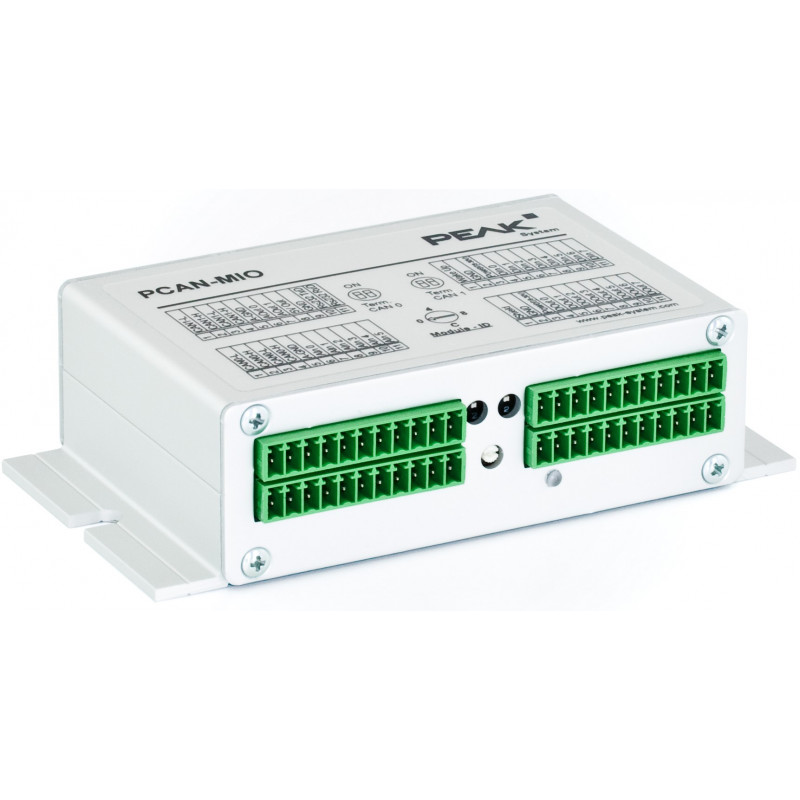

Universal Controller for CAN Applications

Configurable CAN system DAQ with 2 x CAN, 8 digital I/O, 8 analog In, 2 analog Out

• High-speed CAN,  2 channels, CAN 2.0 A/B
• Bit rates: 40 kbit/s - 1 Mbit/s
• NXP TJA1041 CAN transceiver with wake-up
• Alternative pluggable transceiver modules on request (low, high speed, single wire)
• CAN termination switchable
• Wake-up function using separate input or CAN bus
• 8 digital inputs with low-pass performance
• 8 digital outputs, 2 of these with PWM
• 6 analog inputs, unipolar 0 - 10 V, 10 bit, 1 kS/s,
• 2 analog outputs, 10 bit, 0 - 10 V
• Suitable for use in the automotive field
• Detailed configuration with the software PPCAN-Editor 2
• Module can store up to 15 configurations
• CAN gateway between buses
• Individual function blocks for data linkage and data modification
• Available with industrial connectors (Phoenix spring terminal connectors) or automotive connectors (Tyco connectors)
• Aluminum casing with flange. DIN rail fixing optional
• 9 - 27 V voltage supply, overvoltage and reverse polarity protection
• Extended operating temperature range from -40 to 85 °C
• Not recommended for new projects. We suggest you consider using the FD version
