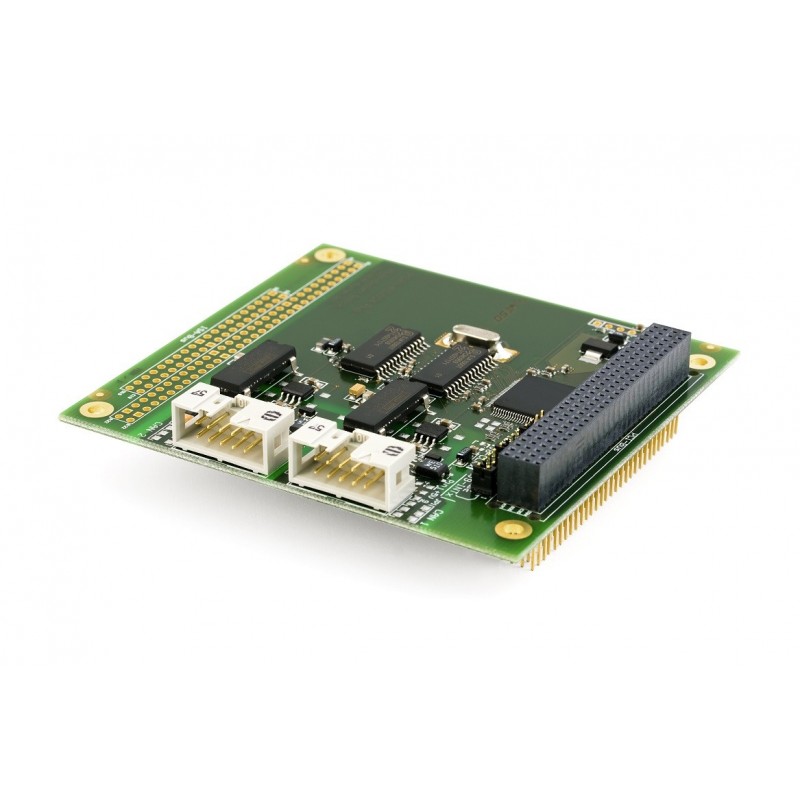

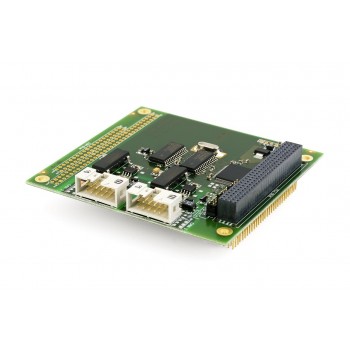

PCAN-PC104+
€265.00
Tax excluded
CAN Interface for PC104+, 1/2/4 ch., non/isolated
# of channels (select): 1
1
2
4
isolated (select option): no
yes
no
Description
Product Details
Attachments
CAN Interface for PC104+, 1, 2 or 4 channels, isolated or non-isolated
1, 2 or 4 channels, isolated (up to 500V) or non-isolated
Transmission speed up to 1 Mb / s
CAN controller implemented using the SJA1000 (16 MHz); 4 ch. version - FPGA
Support CAN protocol 2.0A (standard-frame) and 2.0B (extended-frame)
D-sub 9 pin connector (in accordance with the recommendations of the CIA 1021)
Receiver / Transmitter CAN - 82C251
Not recommended for new design
Reference
IPEH-002094
Data sheet
Interface/bus
PC104+
CAN version
2.0A/2.0B
Isolation
channel-channel
Channels
1-4
Download
PCAN-PC104+
karta katalogowa/data sheets
Download (2.56MB)
