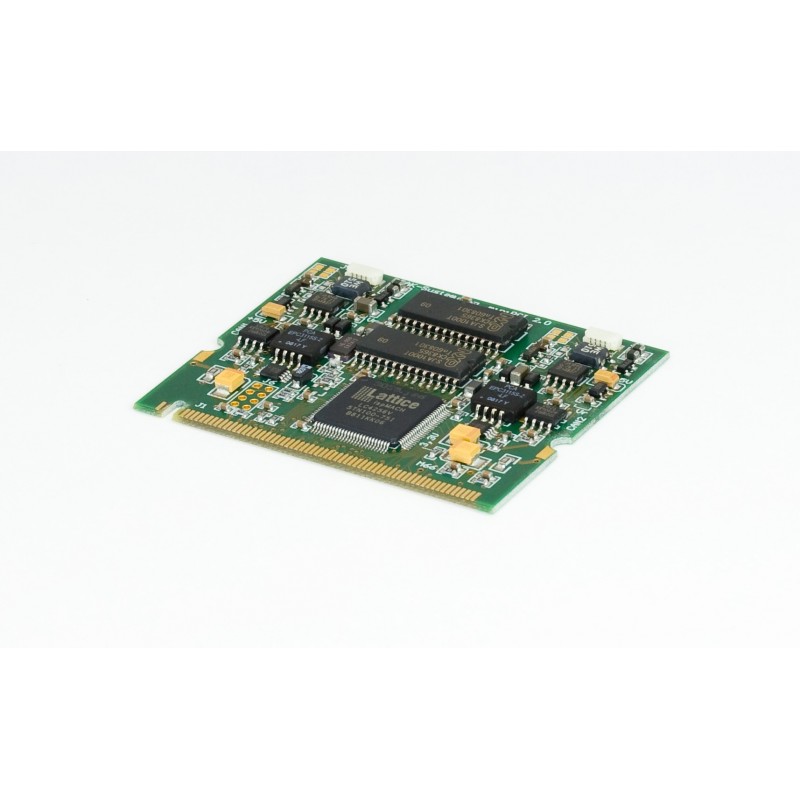

PCAN-miniPCI
€250.00
Tax excluded
CAN Interface for miniPCI, 1 ch., isolated
- 1 channel, signals isolated (up to 300V)
- Transmission speed up to 1 Mb / s
- CAN controller implemented using the SJA1000 (16 MHz)
- Support CAN protocol 2.0A (standard-frame) and 2.0B (extended-frame)
- D-sub 9 pin connector (in accordance with the recommendations of the CIA 1021)
- Receiver / Transmitter CAN - 82C251
- Not recommended for new design
IPEH-003046
Data sheet
- Interface/bus
- PCI
- CAN version
- 2.0A/2.0B
- Isolation
- yes
- Channels
- 1
